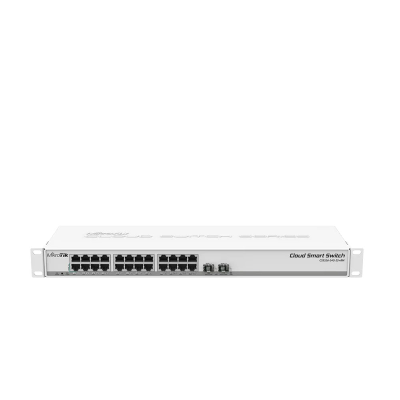

مشخصات فنی سوئیچ میکروتیک CSS326-24G-2S+RM

CSS326-24G-2S+RM

Specification

Specifications

Product code
CSS326-24G-2S+RM
Suggested price
$159.00
Switch chip model
98DX3216
Dimensions
443 x 144 x 44 mm
Operating System
SwOS
Storage size
2 MB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-20°C to 70°C

Powering

Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
10-30 V
Max power consumption
19 W
PoE in
Passive PoE
Cooling type
Passive
PoE in input Voltage
10-30 V

Ethernet

10/100/1000 Ethernet ports
24

Fiber

SFP+ ports
2

Certification & Approvals

Certification
CE, EAC, ROHS
IP
20

Included parts

Rack ears
24V 1.2A power adapter
Screw set (4)

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Switching results

CSS326-24G-2S+RM
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
SwitchingNon blocking Layer 2 throughput3,576.143,427.810,338.342,345.965,476.233,523.8
SwitchingNon blocking Layer 2 capacity3,576.186,855.710,338.384,691.765,476.267,047.6
SwitchingNon blocking Layer 1 throughput3,576.144,000.010,338.344,000.065,476.244,000.0
SwitchingNon blocking Layer 1 capacity3,576.188,000.010,338.388,000.065,476.288,000.0
